DataTalk IPC

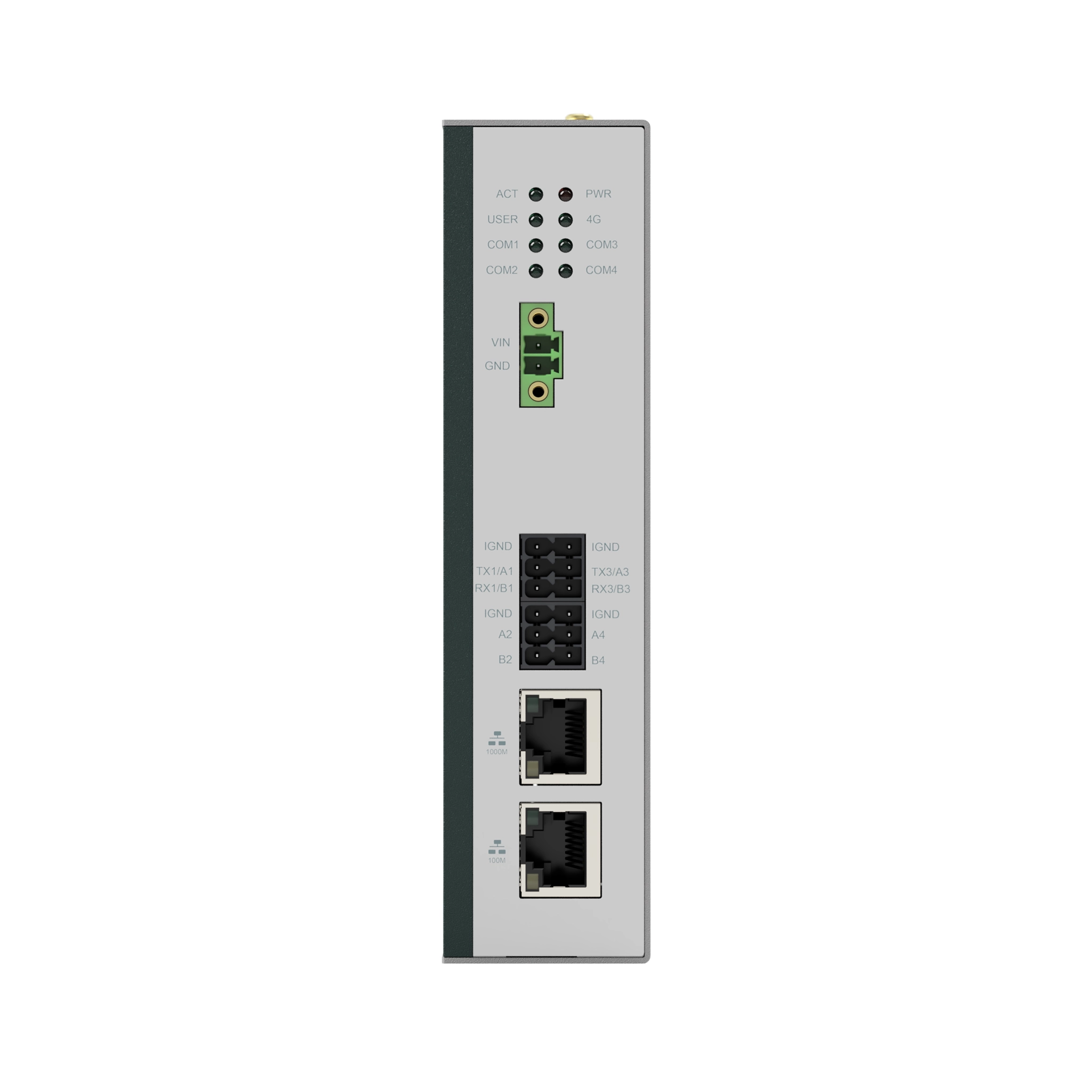

DataTalk IPC (HW) is a rugged industrial edge computer designed to run DataTalk software locally for reliable, 24/7 edge computing and connectivity in demanding industrial environments.
The IPC is sold with one of our software bundles preinstalled. Each bundle is available in two options (S with 150 tags, M with 500 tags).
The license is lifetime and includes an unlimited number of clients.
Powerful Industrial PC

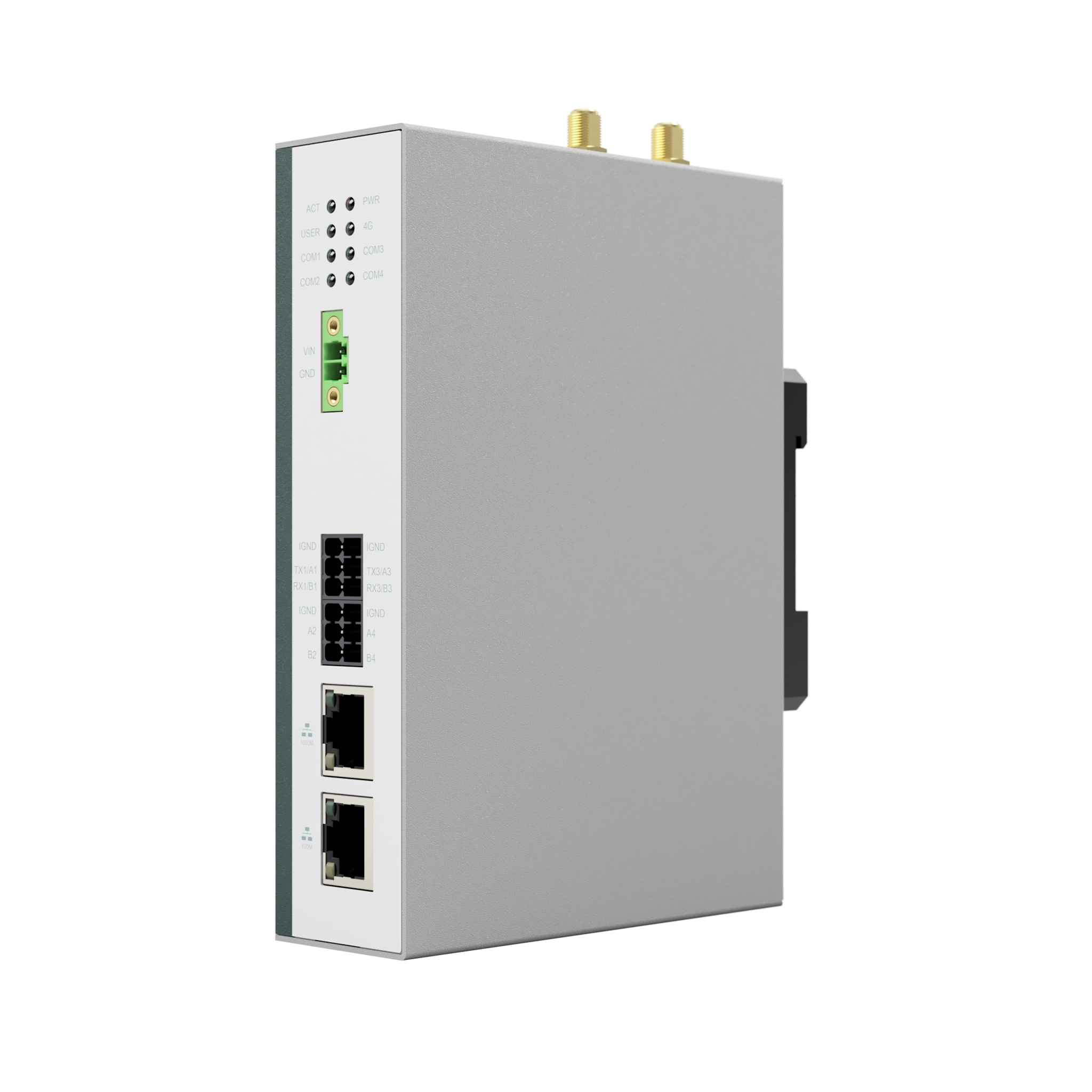

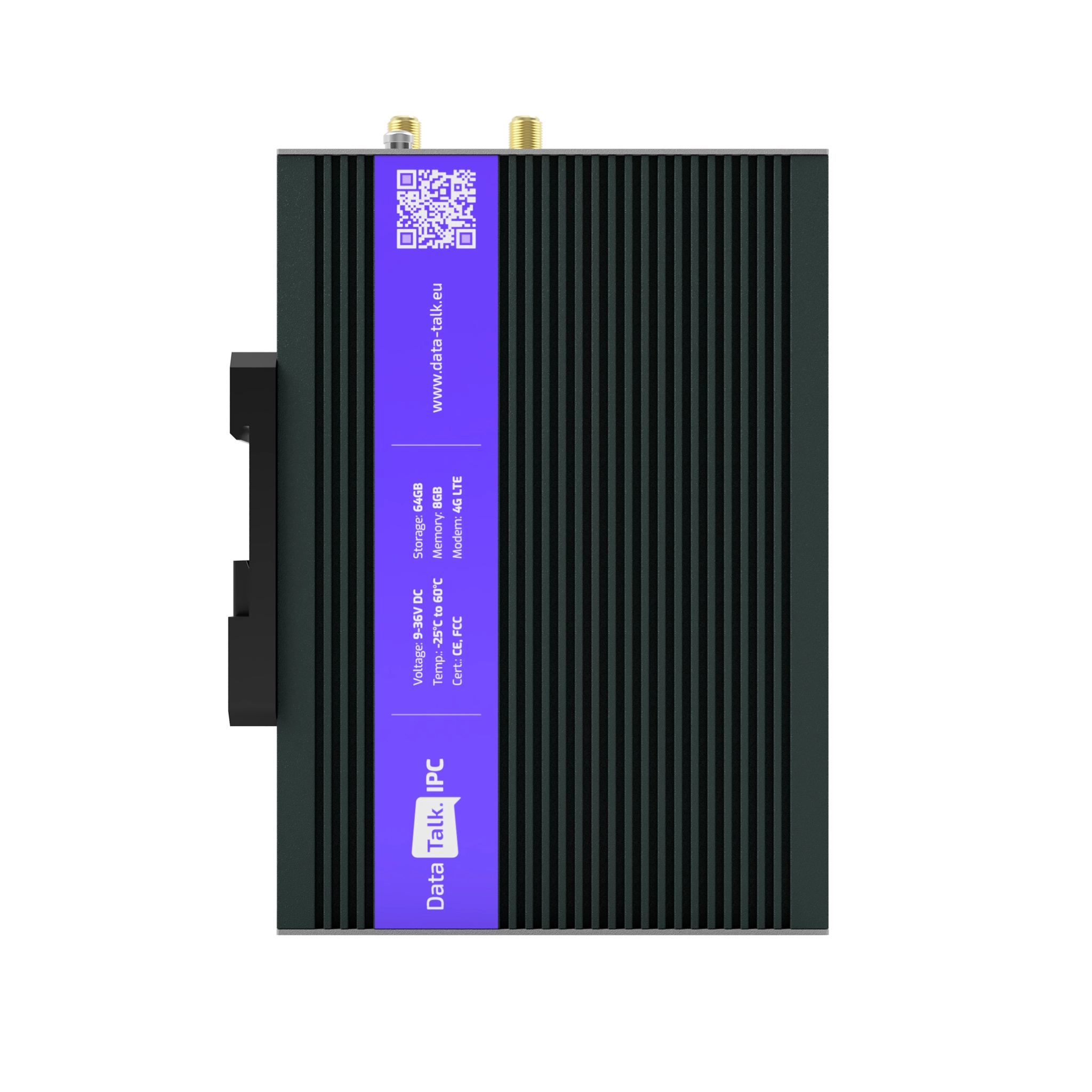

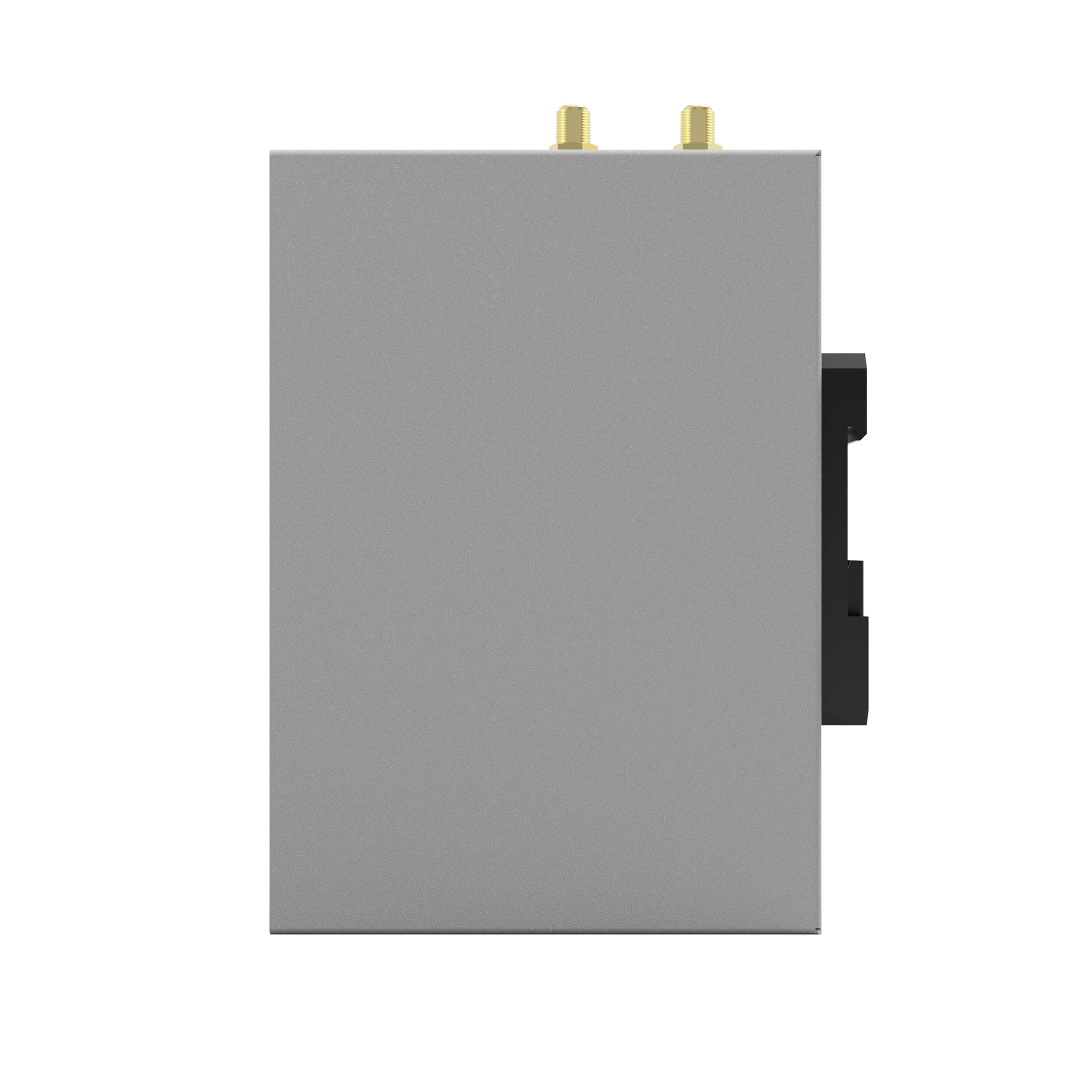

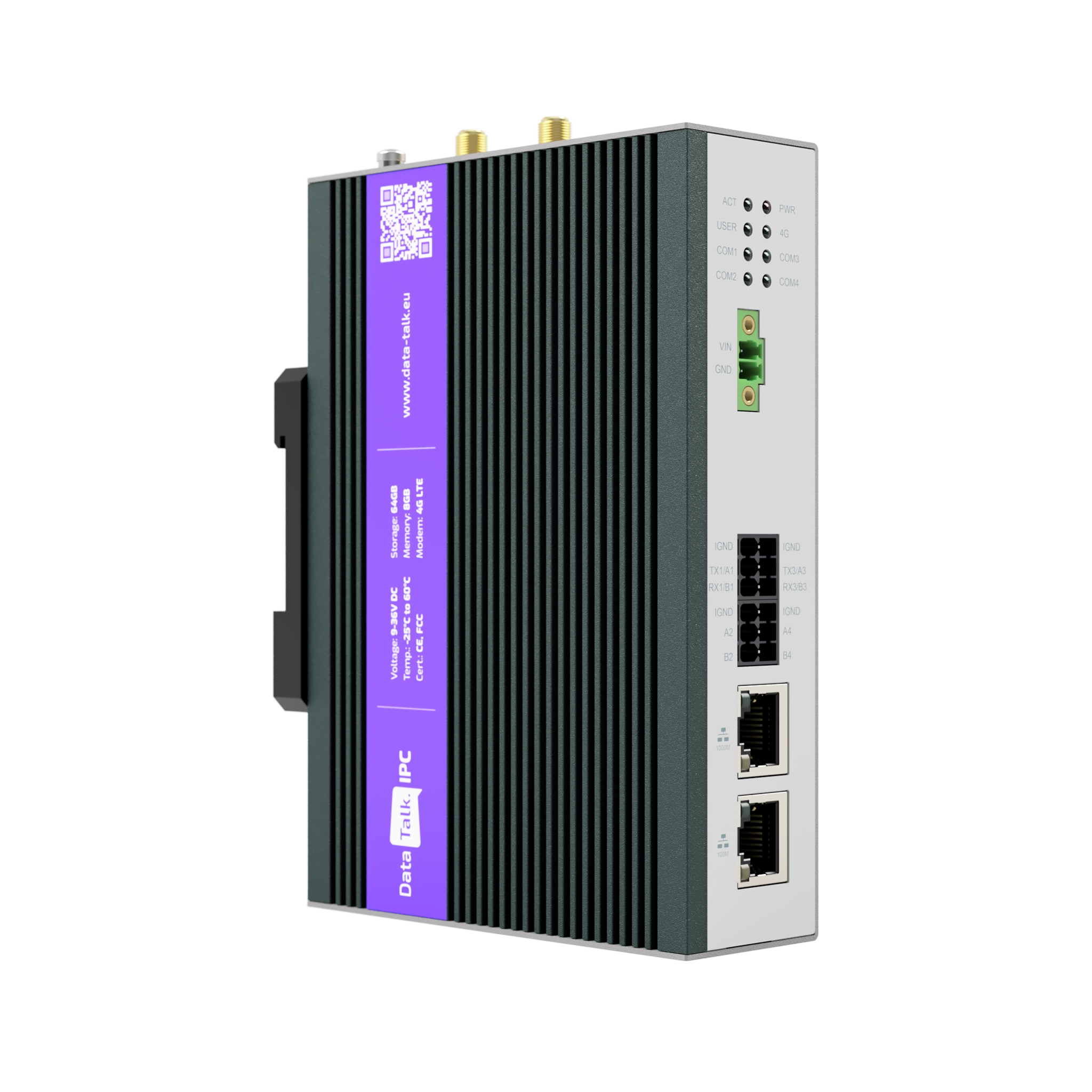

DataTalk IPC is a purpose-built industrial edge computing device that allows businesses to run DataTalk software directly beside machines, PLCs, or production lines without relying on cloud connectivity. It is designed for continuous, around-the-clock operation with rugged hardware, including a quad-core CPU, wide operating temperature range (โ25 ยฐC to 60 ยฐC), power-failure protection via supercapacitor, dual-band Wi-Fi, and LTE connectivity. The compact unit supports DIN-rail installation and offers a broad set of interfaces such as Ethernet, RS485/232, USB, and wireless connectivity to ensure seamless integration with industrial systems.
4 Core CPU (2.4 GHz) 8โฏGB RAM, 64โฏGB eMMC
2.4GHz & 5GHz
dual-band Wi-Fi
LTE Connectivity
(4G Module)
Power Failure Protection (Supercapacitor)
Temperature range of -25 ยฐC ~ 60 ยฐC
DataTalk IPC comes preinstalled with licensed DataTalk software packages, allowing customers to choose configurations tailored to their needs. Available bundles include:
- AI Alarm & Notify for edge-based anomaly detection and real-time alerts,
- Connect, Log & Report for automated local reporting and data logging, and
- OT/IT Gateway for secure bridging between operational technology and cloud or enterprise IT systems.
These packages run locally on the IPC to ensure data stays on-site, support real-time insight, and reduce latency.

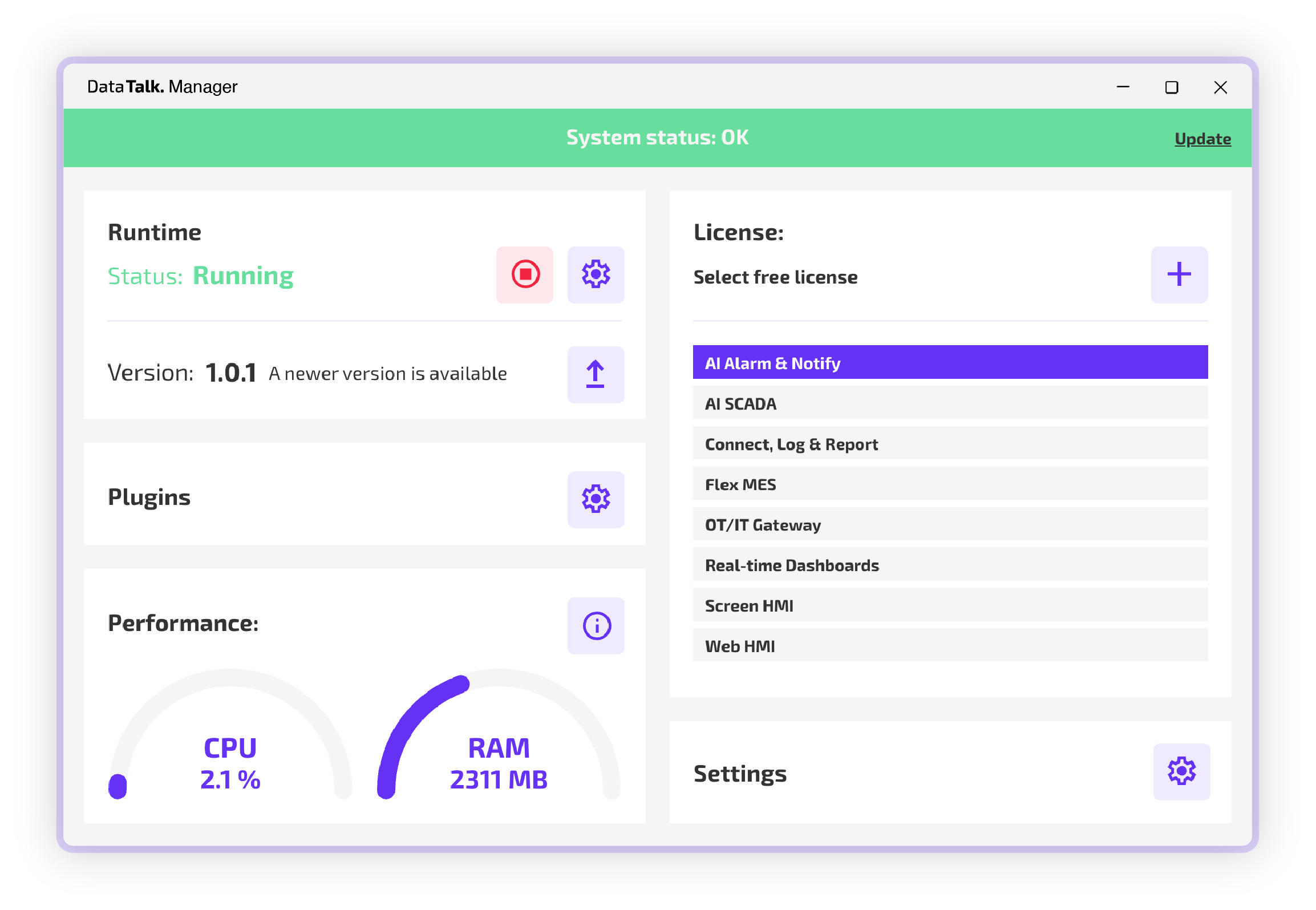

Web Based Configuration
Easily access and manage device settings through your browser with a secure, user-friendly interface – no additional software required.

Licences
Our pricing is determined by the project size (number of tags), while everything else is unlimited. All product features are included. No hidden costs, just a clear, fair deal.
Our lifetime licensing ensures you maintain full ownership and control over your software.
IPC + AI Alarm & Notify
Starting from
โฌ 1 450
- Hardware & Software
- S, M
IPC + Connect, Log & Report
Starting from
โฌ 1 300
- Hardware & Software
- S, M
IPC + OT/IT Gateway
Starting from
โฌ 1 150
- Hardware & Software
- S, M
* Updates are free for 1 year. After 1 year, the price of updates is 20% of the license price annually.
Community support โ e.g., forums, basic FAQs / Limited support โ email, three working days response / Full support โ email, one working day response, SLA option / Premium support โ priority email and phone support, live chat support โ direct access to one of our technicians, SLA option.
Technical Datasheet
| CPU | Quad core (ARM v8) 64-bit SoC @ 2.4GHz |
| VPU | H.265 (HEVC), up to 4Kp60 decode |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | 8GB LPDDR4-4267 SDRAM |
| Storage | 64GB eMMC storage Micro SD card (user storage expansion) M.2 NVMe SSD (options for 128GB, 256GB, 512GB, 1T, 2T NVMe Drive) |
| Power | 1 x DC IN, 2-Pin 3.5mm pitch phoenix terminals with screw holes. It supports 9V – 36V input, the signal is defined as VIN+/GND. |
| RS485/232 | 12-Pin 3.5mm pitch phoenix terminals with IO isolator, which are equipped with electrostatic and surge protection. – 2 x RS485 (Galvanically isolated) – 2 x RS232 (Galvanically isolated) |
| 1000M Ethernet | 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. |
| 100M Ethernet | 1 x adaptive 10/100M ethernet port, RJ45 connector. |
| SD Card Slot | 1 x Micro SD card slot, using to install Micro SD card. |
| SIM Card Slot | 1 x Nano SIM card slot, using to install Nano SIM card. |
| USB 2.0 | 2 x USB 2.0 ports, Type-A connector, supporting up to 480Mbps. |
| Antenna | 4G antenna and Wi-Fi antenna. |
| Input Voltage | 9V – 36V DC |
| Power Consumption | 24W (Max) |
| Dimensions | 143mm x 100mm x 35mm (WxDxH) |
| Weight | 750g |

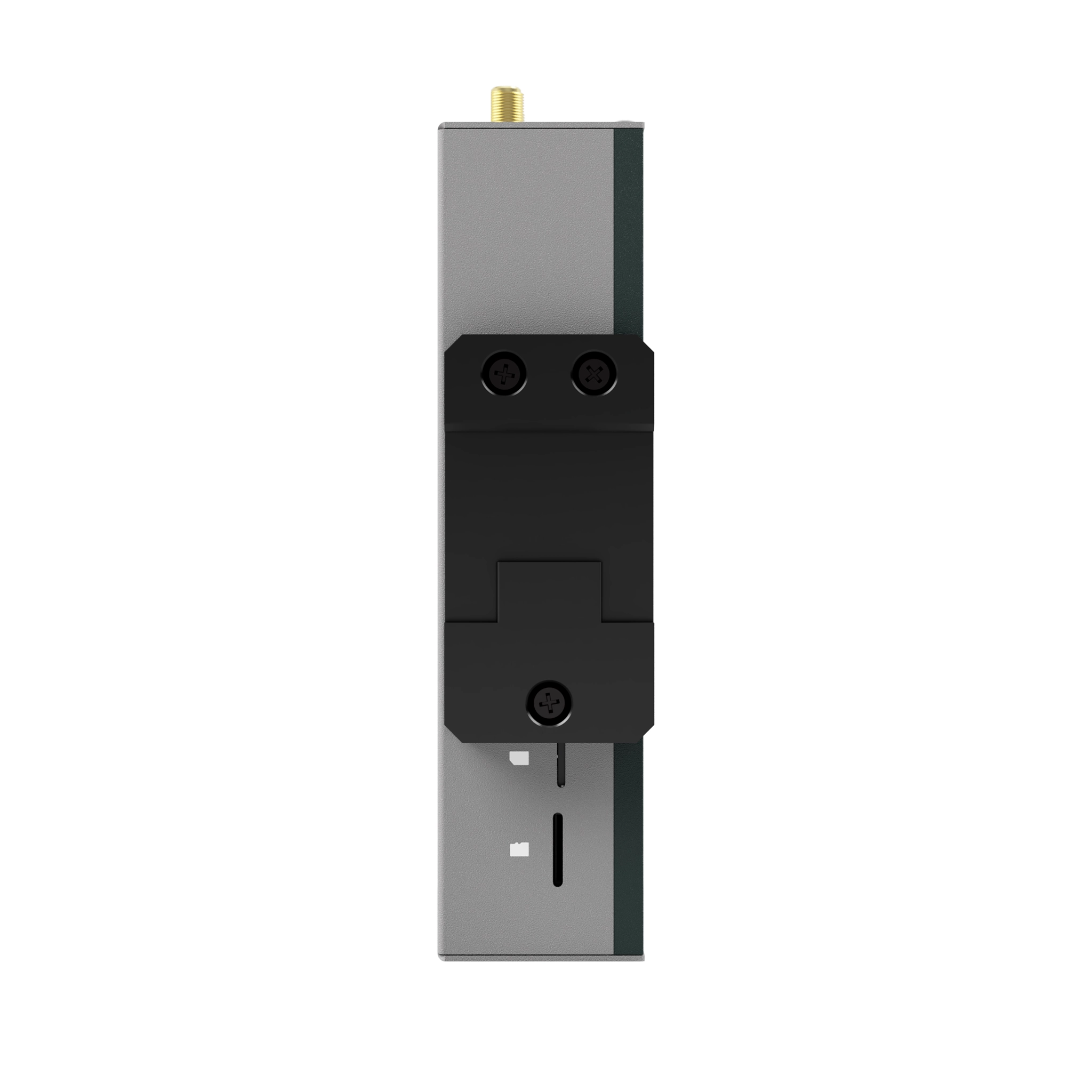

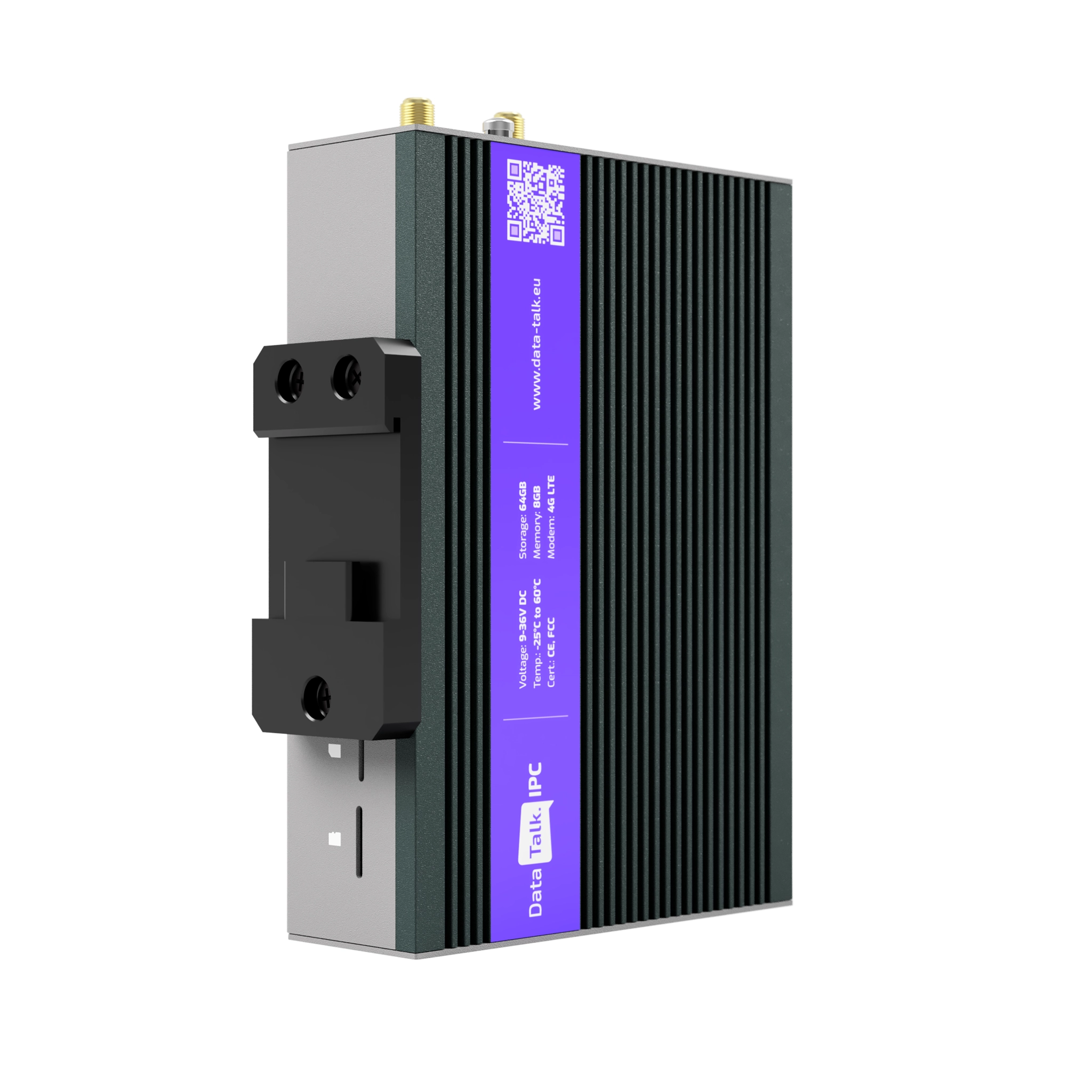

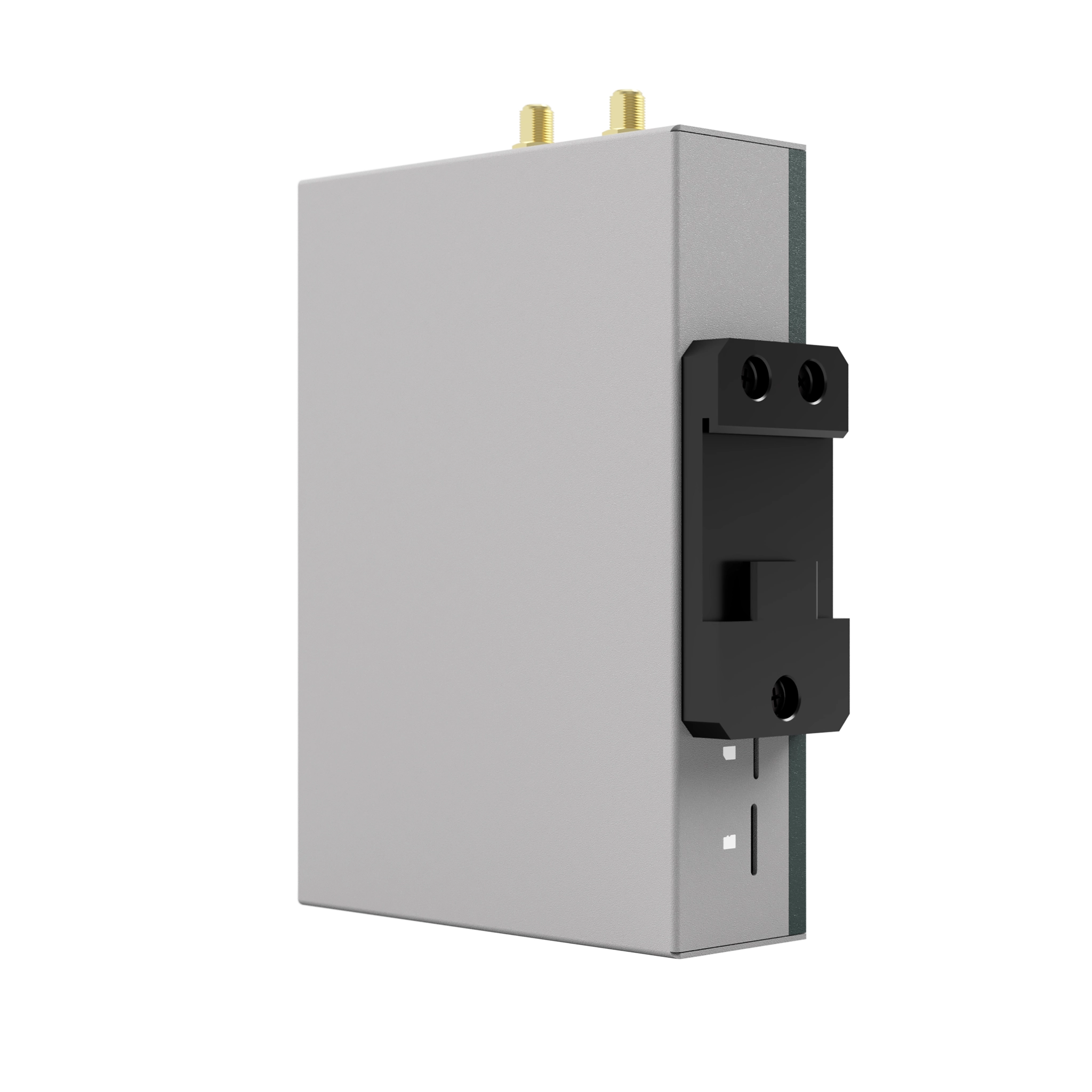

| Installation | DIN-rail installation |
| Wi-Fi | 2.4GHz & 5GHz dual-band Wi-Fi and Bluetooth with antenna.2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n 5GHz Wi-Fi: Compatible with IEEE 802.11 a/n/ac |
| 4G | By default, the unit ships with LTE modem for Europe/Middle East/Africa/Thailand area.* EC25-EUX Module (Europe/Middle East/Africa/Thailand) – LTE FDD: B1/B3/B7/B8/B20/B28A – LTE TDD: B38/B40/B41 – WCDMA: B1/B8 – GSM/EDGE: B3/B8 – GPS/GLONASS/BDS/Galileo/QZSS |
*For other regions, please contact us.
| Operating Temperature | -25ยฐC – 60ยฐC |
| Storage Temperature | -25ยฐC – 60ยฐC |
| Ambient humidity | 5% – 95% (non-condensing) |
