myPANEL
Price range: € 1 600,00 through € 2 800,00

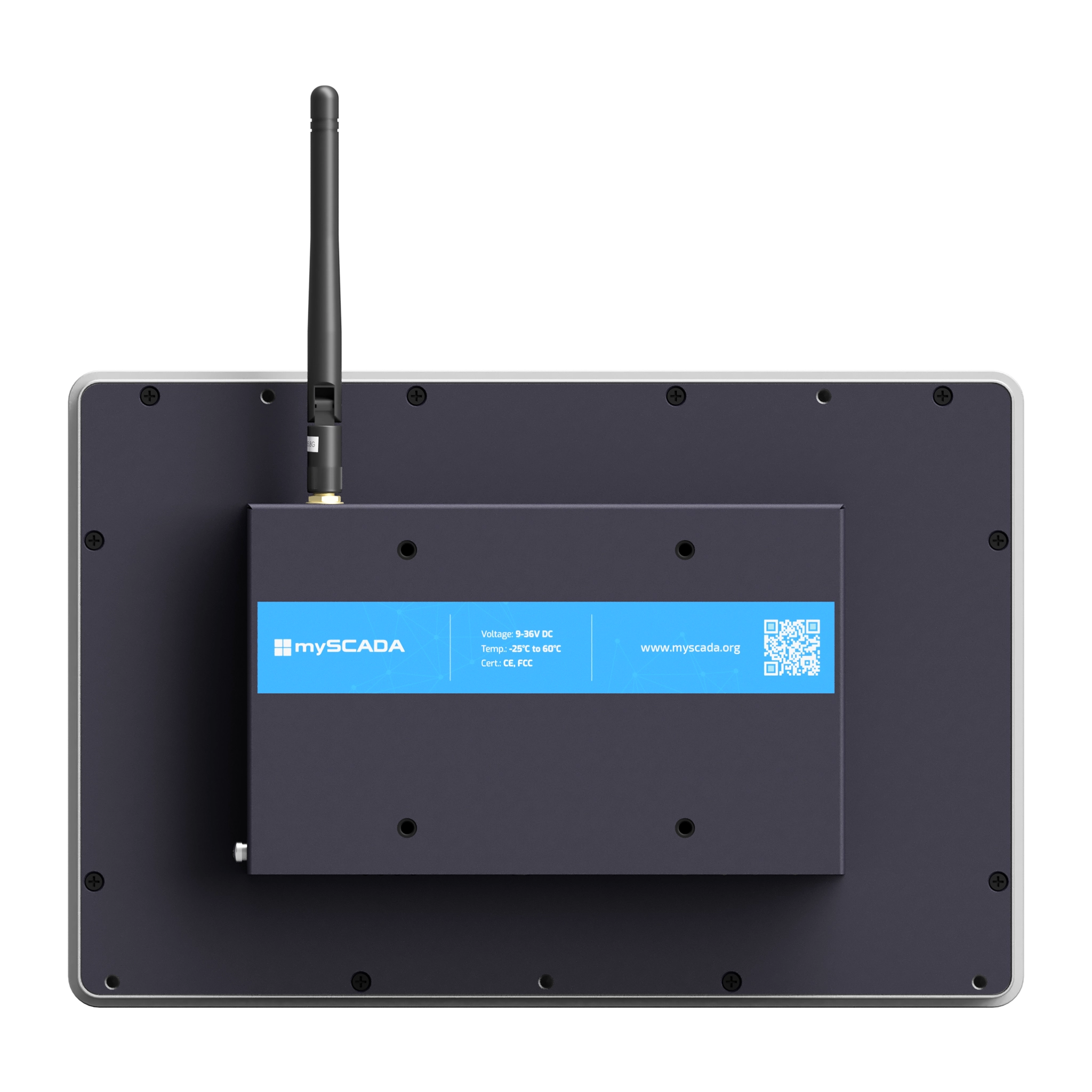

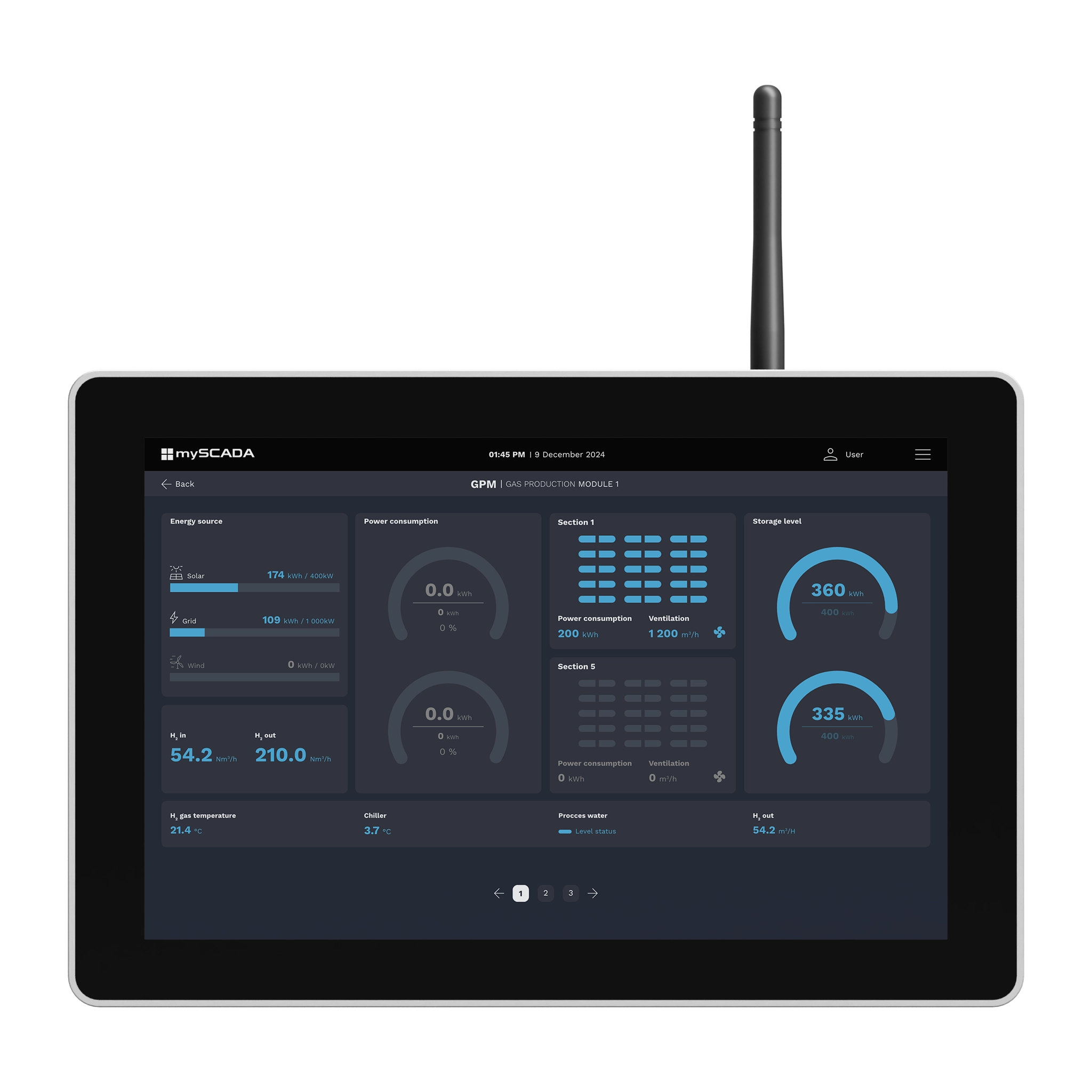

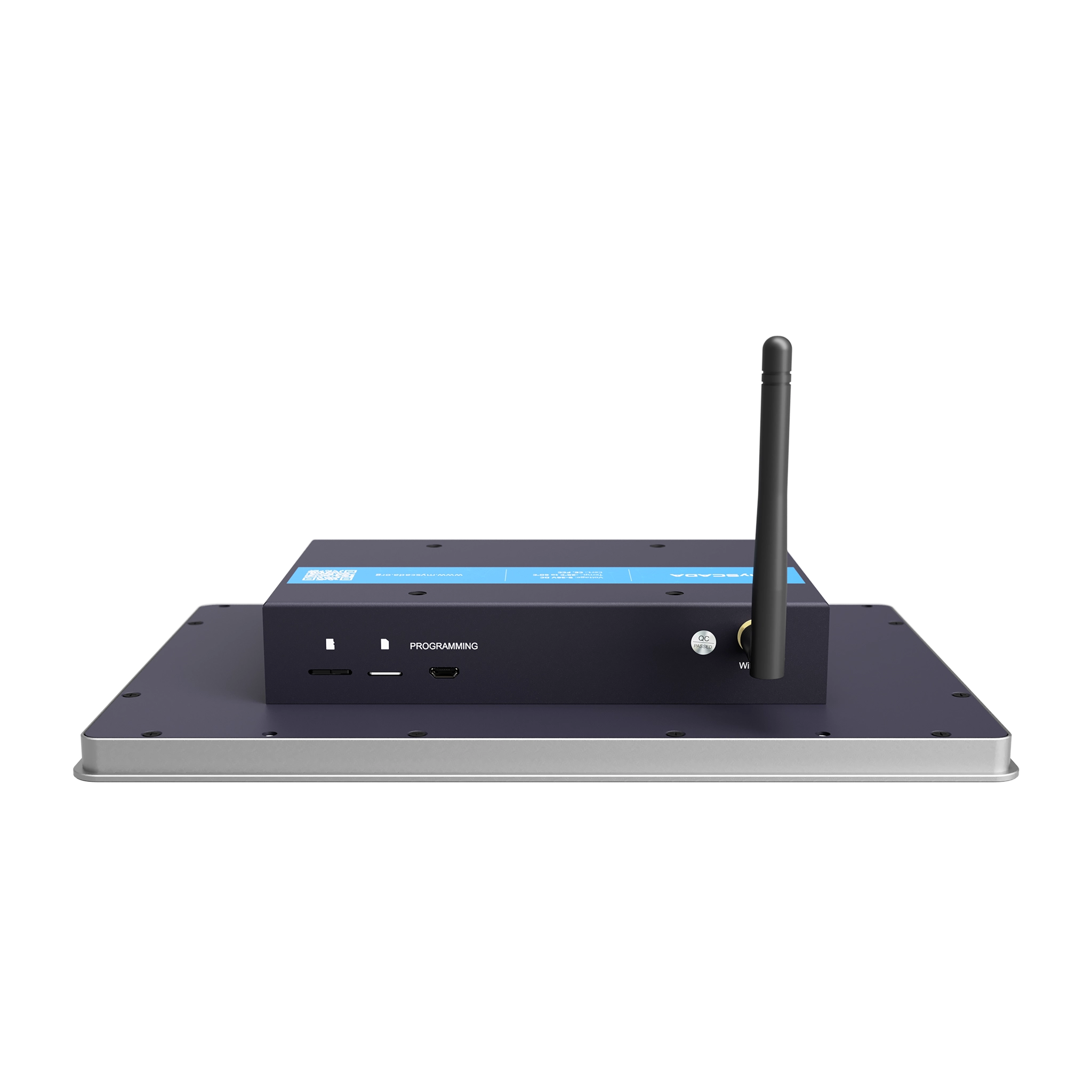

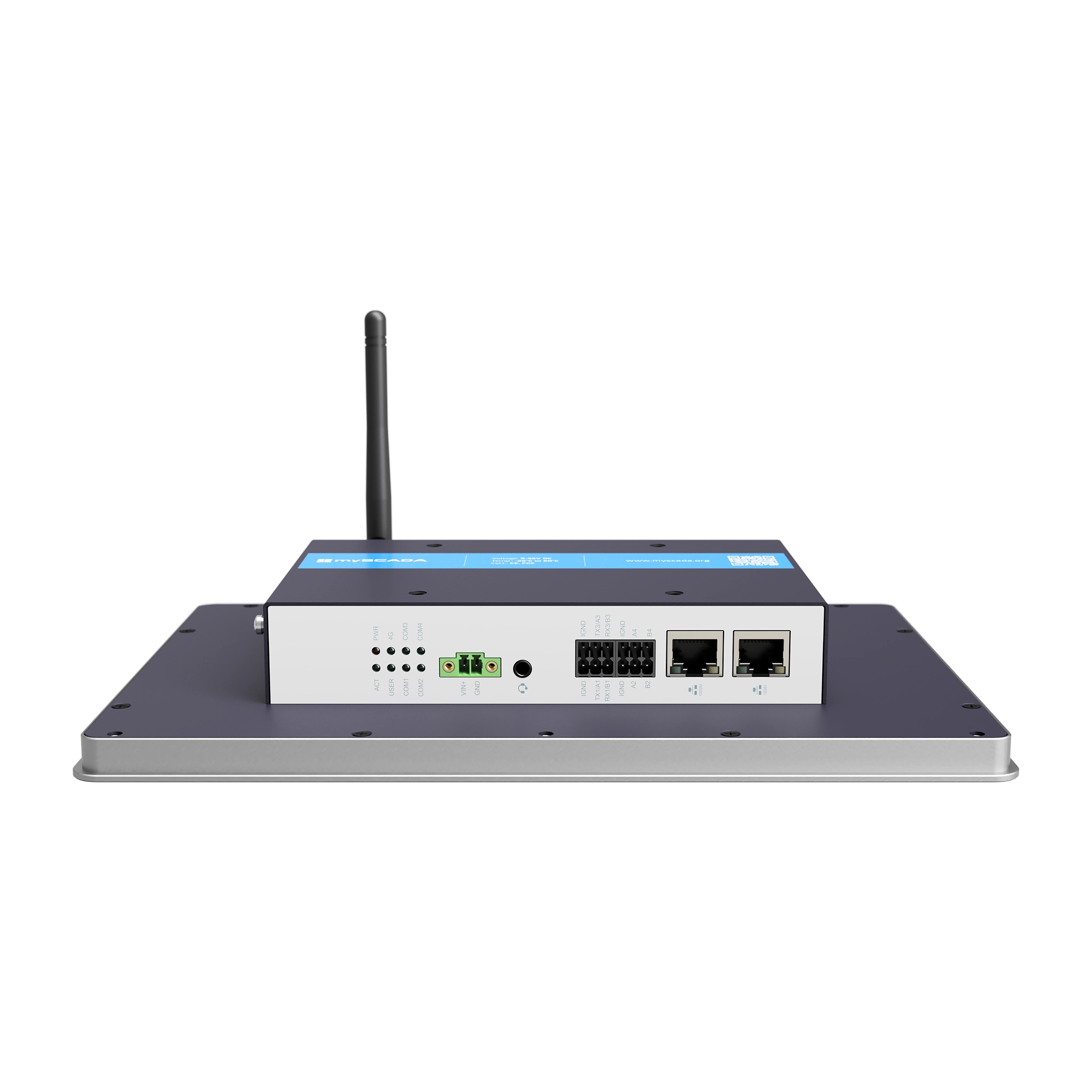

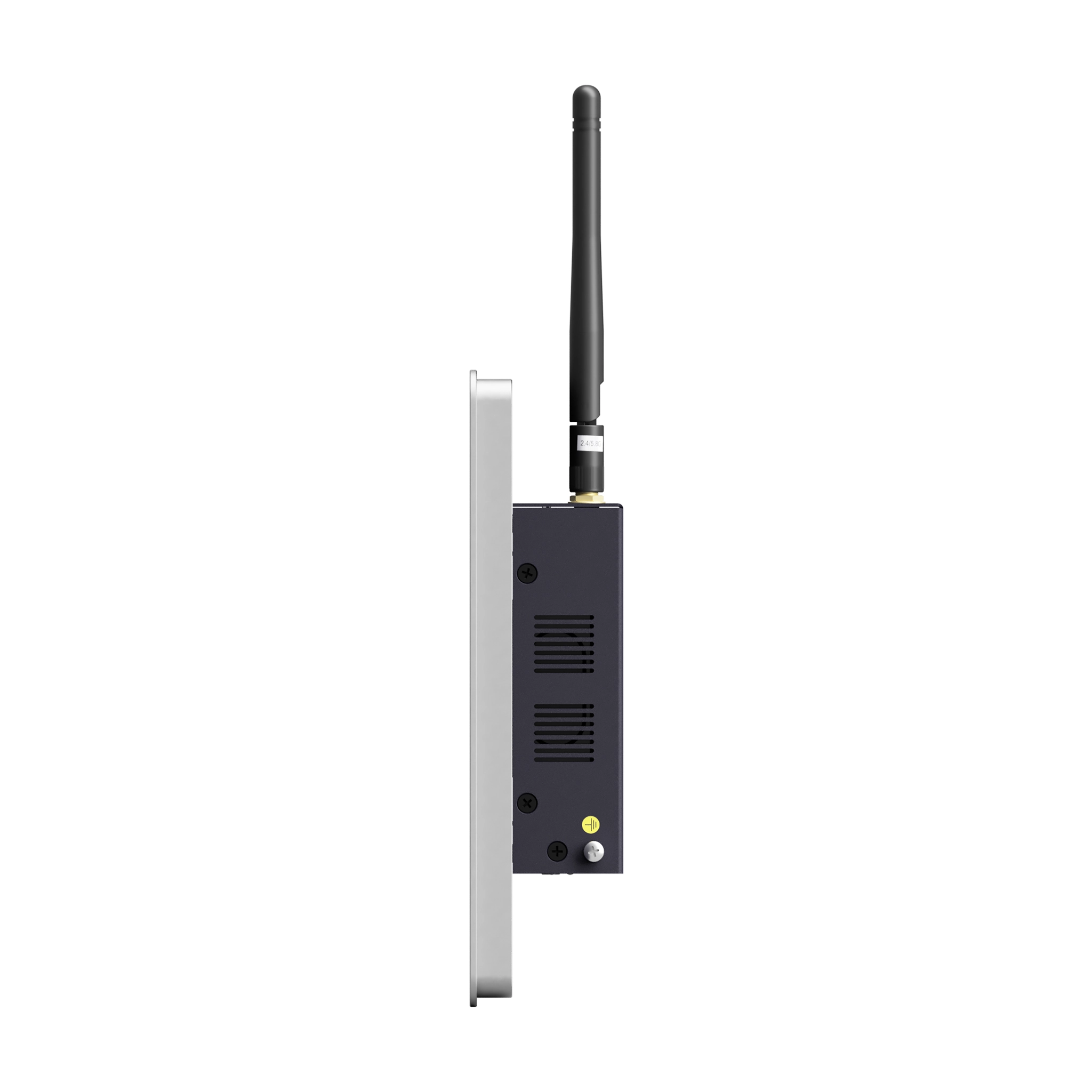

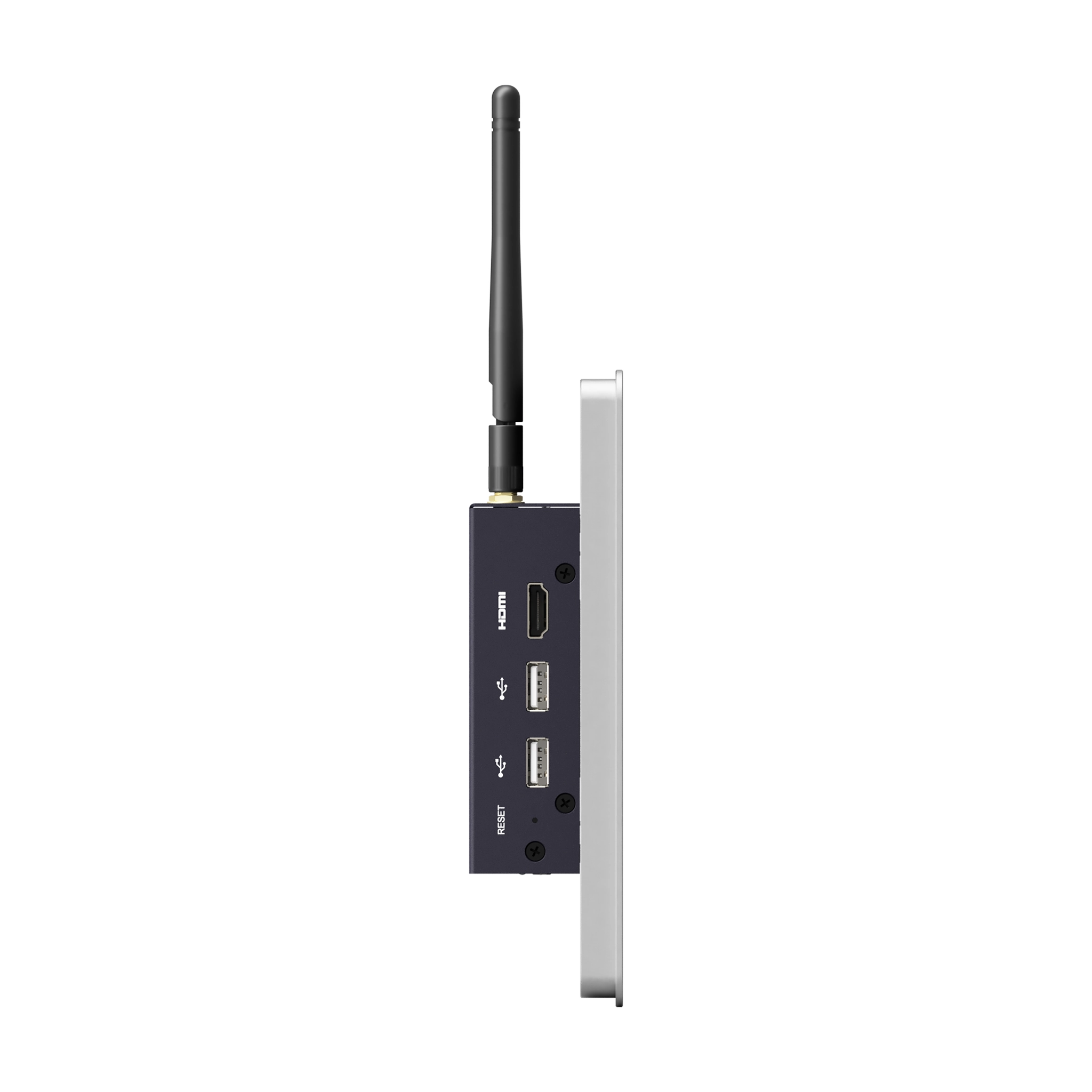

myPANEL (HW) provides a comprehensive solution for monitoring and controlling your technology. Available in five screen sizes: 7,ย 10, 11, 13 and 15 inches.
myPANEL comes preinstalled with our myPRO software (Industrial web-based SCADA runtime).
The license is lifetime and includes an unlimited number of clients and tags.
Perfect Operator’s Interface
The perfect industrial operator’s panel combines an intuitive touchscreen interface, durable design for harsh environments, and seamless integration with control systems. It offers efficient operation, real-time data visualization, and advanced functionalities, contributing to enhanced efficiency in industrial processes.
4 Core CPU (2.4 GHz) 4โฏGB RAM, 32โฏGB eMMC
2.4GHz & 5GHz
dual-band Wi-Fi
LTE Connectivity
(4G Module) – optional
Power Failure Protection (Supercapacitor)
Temperature range of -25 ยฐC ~ 60 ยฐC
myPANEL comes preinstalled with licensed myPRO software (Industrial web-based SCADA runtime).
Configuration and management of the device are done through a web-based interface, enabling secure access without additional software.

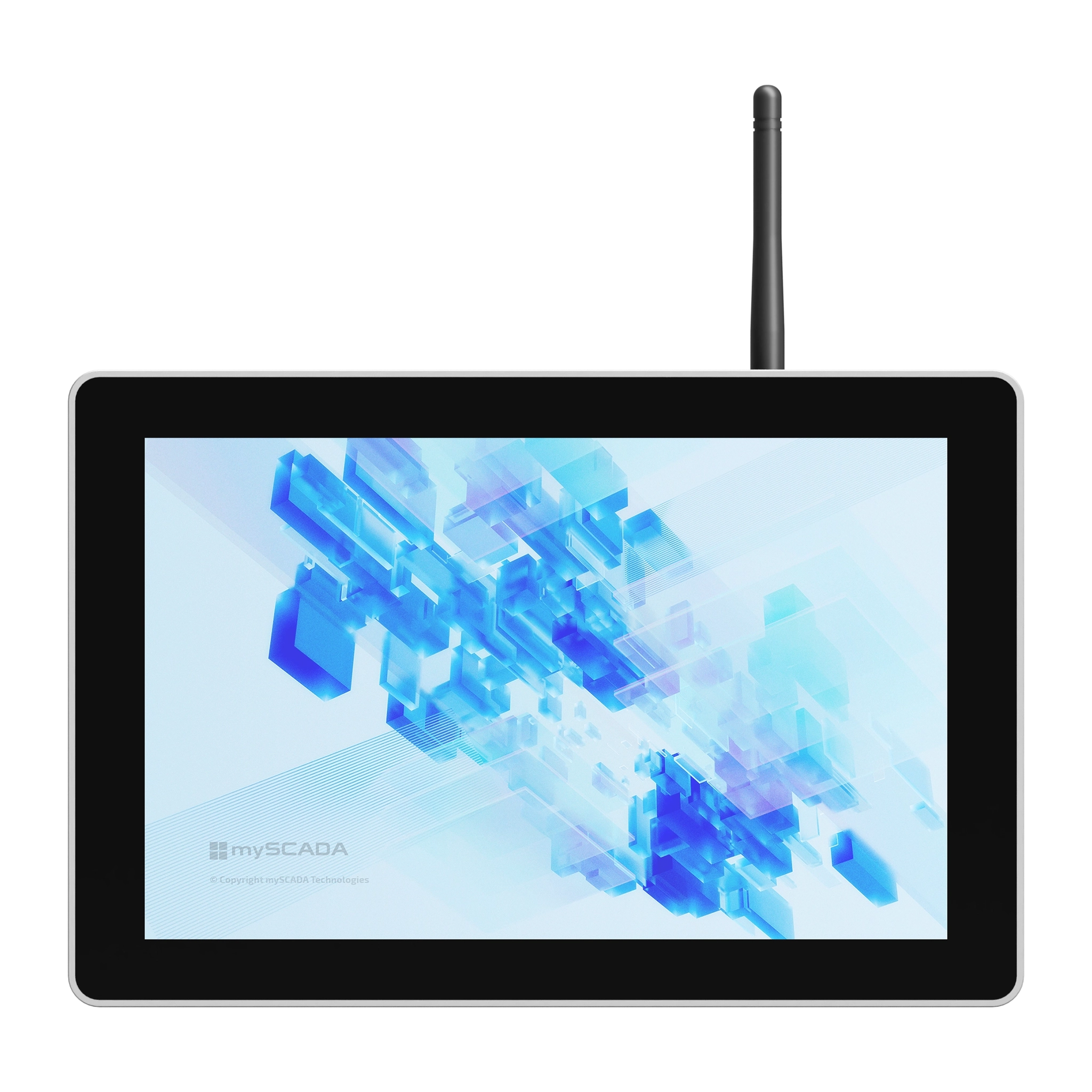

myPANEL Selection Guide
myPANEL 7
SW License
Integrated
LCD size
7.0โณ TFT
Aspect ratio
16:9
Resolution
1024 x 600
Luminance (cd/mยฒ)
400
Voltage
9V ~ 36V DC
Dimensions (mm)
188 x 123 x 43.6
myPANEL 10
SW License
Integrated
LCD size
10.1โณ TFT
Aspect ratio
16:10
Resolution
1280 x 800
Luminance (cd/mยฒ)
400
Voltage
9V ~ 36V DC
Dimensions (mm)
258 x 172 x 42
myPANEL 11
SW License
Integrated
LCD size
11.6โณ TFT
Aspect ratio
16:9
Resolution
1920 x 1080
Luminance (cd/mยฒ)
450
Voltage
9V ~ 36V DC
Dimensions (mm)
303.3 x 191.3 x 45.5
myPANEL 13
SW License
Integrated
LCD size
13.3โณ TFT
Aspect ratio
16:9
Resolution
1920 x 1080
Luminance (cd/mยฒ)
450
Voltage
9V ~ 36V DC
Dimensions (mm)
340.2 x 211.2 x 45.5
myPANEL 15
SW License
Integrated
LCD size
15.6โณ TFT
Aspect ratio
16:9
Resolution
1920 x 1080
Luminance (cd/mยฒ)
450
Voltage
9V ~ 36V DC
Dimensions (mm)
388.3 x 238.3 x 45.5
